Grease Interceptor Septic Design in Ontario

Grease interceptor septic design in Ontario starts with the connection between a food-service kitchen and the on-site sewage system. A grease interceptor does not replace septic treatment, establish the capacity of a leaching bed or make an existing system suitable for a different business. Kitchen wastewater, equipment, treatment arrangements and maintenance access need a coordinated commercial septic review.

This guide explains what owners should prepare before requesting that review. It focuses on the interface between plumbing and septic design, not equipment installation or do-it-yourself sizing. Elmid Design Inc. provides engineering and design consulting. The responsible project team must confirm the scope, specialist input and approval route for the actual property.

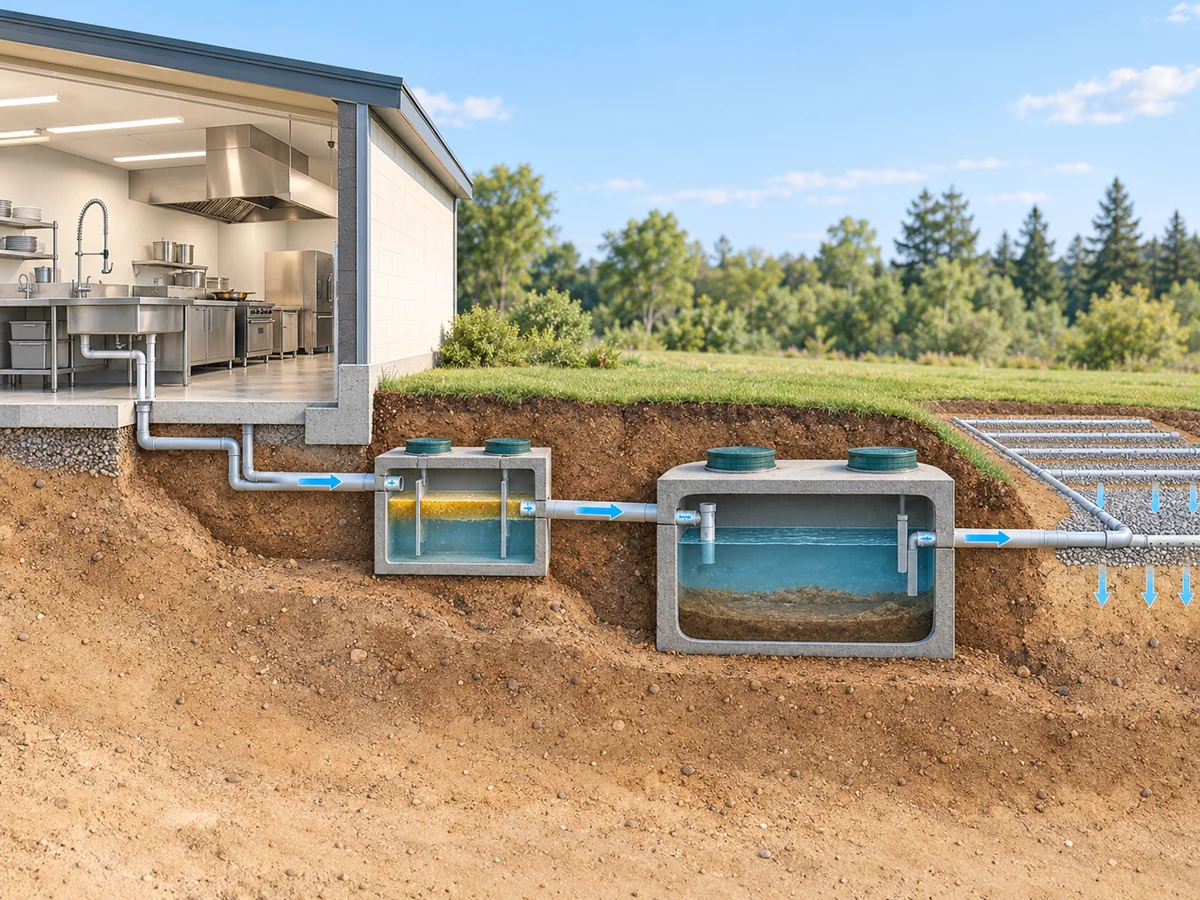

Grease interceptor septic design: three distinct functions

A food business may describe every part of its wastewater system as “the septic.” That shorthand can obscure important responsibilities. Kitchen drainage, grease interception, sewage treatment and dispersal do different jobs. A workable design explains the relationships rather than assuming that selecting one component settles the whole system.

Grease interception addresses a particular wastewater stream

The interceptor is associated with grease-bearing wastewater from the relevant kitchen fixtures and equipment. Its selection and connections belong in a coordinated plumbing design. The designer needs to understand what enters it, how the equipment operates and who will maintain it. A product photograph alone supplies none of that operating context.

Start with an equipment schedule rather than a preferred product. Identify each item, its intended use and the information available from its manufacturer. The qualified designer can then determine which streams require interception and what further information the assessment needs. Owners should not assume that every drain belongs on the same connection.

Septic treatment addresses the receiving system

A commercial septic review must assess the receiving sewage system for its actual wastewater demand and characteristics. An interceptor is not evidence that downstream treatment can accept the proposed discharge. Likewise, a large tank does not demonstrate that the treatment process, site area or existing approval accommodates the business.

A commercial septic review should connect the kitchen information to the complete property use. Staff washrooms, customers, accommodation or other activities may contribute separate demands. Keep those uses visible even when the immediate project is a kitchen renovation. Otherwise, a narrow equipment change can hide a larger change in the design basis.

Dispersal depends on the site and approved arrangement

The land-based part of an on-site system is not simply a place to send whatever leaves the kitchen. Its suitability depends on the site investigation, treatment arrangement and governing requirements. Grease interception cannot create missing land, resolve unsuitable site conditions or establish permission to discharge.

For an existing property, ask what the records actually demonstrate. A plan may identify a bed location without proving its present condition. A service receipt may show that a tank was emptied without establishing capacity for a new restaurant. Different records answer different questions, and the design review should preserve those distinctions.

Ontario requirements for grease interceptor septic design

The current Ontario Building Code addresses grease interception within its plumbing provisions. Part 8 also contains a specific condition for restaurant kitchen wastewater: passage through an operating grease interceptor does not remove the requirement for an appropriately engineered sewage system. This is conditional design territory, not a blanket permission for a kitchen connection. See the official Part 7 plumbing provisions and Part 8 sewage provisions.

Ask the responsible designer to confirm the applicable current provisions and the authority reviewing the project. This article deliberately does not provide a sizing formula, prescribed equipment model or universal connection detail. Those decisions need the actual equipment, system and site information. A general article cannot resolve an incomplete application or a project-specific interpretation.

The approval route also needs a separate check. Ontario’s environmental permissions guidance distinguishes systems under the Building Code from sewage works requiring environmental permission. Design capacity, combined works, property boundaries and discharge arrangements can matter. Calling a project “small commercial” does not settle its jurisdiction, and adding an interceptor does not determine whether an existing approval needs review.

Municipal sewer rules are not an on-site approval

Municipal fats, oils and grease guidance often appears in searches for restaurant wastewater. For example, Toronto’s grease-interceptor guidance addresses connections to its sanitary sewer system. It is useful context for that setting, but it is not permission to discharge into a private on-site system elsewhere in Ontario.

Confirm the actual wastewater destination before relying on a municipal checklist. An address within a municipality does not, by itself, establish that the building is connected to a municipal sewer. The owner should provide available servicing records, and the project team should identify uncertainties before choosing an approval path.

Related reading: environmental approval coordination and the ECA application

Kitchen wastewater: prepare a kitchen operating brief, not just a floor plan

A floor plan identifies space. An operating brief explains how the business intends to use the space. Both are valuable for grease interceptor septic design. Before selecting equipment or committing to a leasehold layout, describe the intended food operation in plain language and distinguish the opening-day arrangement from possible future expansion.

Describe the operation for kitchen wastewater septic design

Explain whether the proposal involves food preparation, cooking, dishwashing, catering, event service or several activities. Identify any differences between ordinary service and busy periods. A café description can conceal a substantial catering kitchen, while a large dining room may operate only occasionally. The review needs the intended pattern, not a marketing label.

Include the expected operating days and hours, staffing pattern and proposed customer use. Where these remain uncertain, label them as assumptions. A design brief is more useful when it identifies an unresolved operating decision than when it supplies a confident estimate with no basis.

Equipment inputs for septic and grease interceptor design

Provide an equipment list with available manufacturer information. Identify proposed replacements as well as retained equipment. Note relevant sinks, washing equipment, preparation areas and other water-using activities. The plumbing designer determines the required connections; the owner’s task is to provide a complete and accurate description.

Describe cleaning activities at a practical level, including the products and equipment the operator expects to use. Do not assume that a chemical marketed for drains is compatible with every on-site treatment arrangement. Questions about cleaning products and wastewater compatibility should go to the responsible designer and equipment provider, with the applicable operating requirements considered.

Separate evidence from estimates in kitchen wastewater septic design

For an existing operation, provide available water-use records and explain what those records include. A shared meter may serve uses beyond the kitchen. A quiet-season record may not describe the proposed busy period. These records can inform the assessment, but the reviewer should not silently treat them as proof of future design demand.

For a new operation, identify the source of each assumption. The architect’s layout, operator’s business plan and equipment supplier’s schedule should describe the same proposal. If the owner changes the menu or service model, tell the design team before treating earlier calculations as final.

Commercial septic review: check existing records before assuming spare capacity

An existing food business may already have both an interceptor and a septic system. That is a starting point for investigation, not a finding that every proposed alteration is acceptable. Grease interceptor septic design for an alteration should identify what is approved, what is installed and what the new operation would change.

Records for septic design with a grease interceptor

Useful records may include permits, approved drawings, design reports, equipment information and documented changes. Provide complete documents where available, including relevant notes and conditions. A cropped drawing showing only a tank can omit the information needed to understand the system’s intended use.

Organize records by date and identify their status. Keep an approved drawing separate from an early proposal or contractor quotation. If a later sketch conflicts with the approved plan, flag it rather than deciding which version is correct. The reviewer needs to understand the conflict and determine what verification is appropriate.

Explain operating concerns for kitchen wastewater septic design

Describe known changes in use, equipment or occupancy since the available approval. Include service records and reported operating concerns without attempting to diagnose them. Repeated service calls, unexplained changes or missing documentation may affect the investigation scope, even when the proposed project is limited.

Owners should not open tanks, enter confined spaces or investigate wastewater equipment themselves to complete an information request. Obtain records from the appropriate service provider and arrange any physical investigation through qualified personnel. Planning information must not become a reason for unsafe access.

Identify what the existing-system records do not establish

A useful review can begin with incomplete records, provided the limitations remain explicit. The proposal should distinguish document review from field investigation, testing and design. It should also identify which missing facts prevent the team from reaching a conclusion about reuse.

The result may be further investigation, a revised design scope or a finding that the proposed operation needs a different arrangement. Do not equate an initial consultation with acceptance of the existing system. A responsible conclusion is tied to the evidence available and the questions the professional was engaged to answer.

Related reading: planning an existing septic-system replacement or upgrade

Kitchen wastewater septic design: flow, strength and operating pattern

The amount of wastewater is only one part of the interface review. The project team also needs to understand the nature of the discharge and how it arrives. An equipment change that appears small on a floor plan can alter the information needed for the receiving system assessment.

Account for every use served by the receiving system

List other activities served by the system, including uses outside the immediate tenant area. A shared building may have several contributors, and the kitchen designer may not hold all their records. Identify who will provide the complete property information instead of treating the kitchen schedule as a complete sewage design brief.

Where existing and proposed uses differ, describe both. This makes it easier to identify which assumptions require review. Avoid combining current measured use and future estimates into one unexplained total. The designer needs to know what each figure represents before deciding how it can be used.

Do not turn grease removal into a treatment guarantee

Grease interception addresses a defined part of the wastewater problem. It does not establish that all remaining wastewater characteristics are suitable for the receiving system. Questions about treatment compatibility need the actual process information and, where appropriate, specialist assessment. Do not present an interceptor’s product rating as a performance guarantee for the complete site.

The owner can help by disclosing activities that may not be obvious from the building description. Identify food processing, unusual cleaning practices or a proposed expansion beyond ordinary restaurant service early. The design team can then decide whether those activities fit the intended scope or require separate advice.

Explain intermittent and seasonal use

Describe periods when the business is closed and the nature of its busiest service. An event venue, seasonal operation and regularly occupied restaurant may need different operating information. Do not convert one business model into another merely because the same number of tables fits on a plan.

For staged development, identify what will operate first and what is genuinely proposed later. Do not infer future capacity from unused space or a larger-looking component. Any allowance for later use needs to be explicit in the design basis and relevant approval documents.

Related reading: why septic design flow is distinct from individual component size

How grease interceptor planning connects to septic design

Grease interceptor septic design crosses several drawing boundaries. The kitchen layout may be prepared separately from plumbing and civil information. A single coordination list helps the team identify who owns each interface and prevents an assumption from being copied between drawings as though it were verified.

Use consistent equipment identifiers

Give relevant equipment the same identifiers on schedules and drawings. A reviewer should be able to connect an item on the kitchen plan to its supporting information without guessing. If the operator substitutes equipment, update the schedule and request review of the affected design information.

Record the model or specification status rather than pretending that an unselected item is final. A provisional allowance can support early discussion, but the team should identify the decision needed before a final design is issued. Supplier information supplements professional review; it does not replace it.

Make the maintenance route part of the planning conversation

Ask how the relevant components can be reached for the service they require. Consider the proposed building layout and outside site use together. Later storage, landscaping or tenant arrangements can undermine equipment access, even when an early plan shows an unobstructed route.

The project team should coordinate access expectations with the equipment requirements and service provider. This guide does not prescribe service clearances or a cleaning method. The useful owner-level question is whether the proposed location can actually support the required operation and servicing without relying on an undocumented assumption.

Resolve site conflicts before finalizing the package

Identify other planned work near the on-site system, including additions, parking changes and grading. Show the same property features consistently across the relevant documents. A kitchen-only drawing cannot demonstrate that an outside component fits alongside a changed site plan.

If a conflict appears, identify the responsible discipline and the decision required. Moving an item on one drawing is not a coordinated resolution when another drawing still relies on its earlier position. Retain the reason for the change so the next reviewer can understand the revised arrangement.

• Owner or operator: confirms intended use and provides available records.
• Kitchen and equipment team: identifies equipment and operational requirements.
• Responsible designers: coordinate plumbing, sewage and site interfaces within their scopes.
• Service provider: clarifies practical servicing arrangements for the proposed equipment.
• Reviewing authority: determines applicable submission and approval requirements.

Build a grease interceptor septic design information pack

A concise information pack helps prevent different participants from solving different versions of the project. Use a dated cover sheet and keep the original records intact. The aim is not to produce a polished report before engaging a designer. It is to make the starting information understandable and the remaining decisions visible.

Keep a source register

For each important record, note who supplied it, its date and what it appears to describe. An equipment brochure, approved plan, maintenance invoice and operator estimate have different purposes. A source register helps the reviewer avoid treating them as equally authoritative evidence.

Identify documents that may be superseded. If two plans show different equipment or component locations, retain both and flag the discrepancy. Do not redraw the older plan to resemble the newer one before review. Preserving the conflict allows the responsible professional to decide whether further records or site verification are needed.

Use an assumption and decision log

List assumptions that could change the proposed arrangement. Examples include an unselected washing unit, an undecided catering operation or uncertainty about another tenant’s wastewater contribution. For each item, identify who can provide the answer and which part of the design depends on it.

Then separate decisions from information requests. “Obtain the existing approval” is a record request. “Confirm the proposed operating model” is an owner decision. Keeping them distinct helps the team progress independently clearable work without quietly finalizing the parts that remain uncertain.

Protect sensitive information

Only circulate information relevant to the engineering and approval task. A service record or lease may contain personal, commercial or payment details that do not belong in a public drawing package. Ask how sensitive records should be supplied and whether a relevant extract is sufficient.

Keep the original available to the appropriate reviewer when context matters. Privacy protection should not alter the technical meaning of a record. Public project illustrations should remain conceptual unless there is permission and evidence to present actual work. A generic kitchen image is not proof of experience with a specific installation.

Information is not an instruction to proceed. A record tells the team what is known. An assumption identifies what still needs confirmation. A design decision belongs to the responsible professional within the agreed scope.

Scope questions for septic and grease interceptor design

A proposal should make the responsibility boundaries as clear as the technical objective. “Septic review” can mean anything from an initial record assessment to a coordinated design submission. Ask which outcome the proposed fee covers and which inputs must be supplied by the owner or another consultant.

If a lease or business purchase depends on the proposed use, identify the wastewater review as an unresolved project dependency. A statement that a property has a septic system does not answer whether the intended kitchen can be supported. Obtain appropriate professional advice before making commitments that rely on an unverified servicing assumption. This is particularly important where the available documents describe a materially different operation.

Define the review and its limits

Confirm whether the scope includes existing-record review, site attendance, investigation coordination, calculations, drawings or responses to authority comments. These are distinct activities. Do not assume that an initial assessment includes every later design or inspection service.

Identify the interface with the plumbing and kitchen teams. The proposal should explain who obtains equipment data and who coordinates a changed selection. If a specialist assessment is required outside the agreed scope, establish that need before presenting a preliminary conclusion as a completed design.

Define the deliverables and who revises them

Ask what documents will be delivered and their intended use. An early feasibility note should not be confused with construction-ready information. Similarly, an issued drawing package does not establish that a permit has been granted. Clear status labels protect everyone from relying on documents for the wrong purpose.

Discuss how changes in owner instructions or equipment selection will be handled. Revision responsibilities matter when several participants control different documents. Agreeing on a coordination contact can help prevent an altered kitchen schedule from circulating without the people assessing its downstream implications.

Separate design work from construction and operation

Confirm whether construction-stage services or field review are included, excluded or subject to a later agreement. The installer’s work, authority inspections and the designer’s services have different roles. None should be implied merely because the proposal includes permit-support language.

Also identify who will arrange ongoing service after the project. The engineering proposal can describe coordination needs, but it does not automatically appoint a maintenance provider. Resolving those boundaries early helps the owner plan the project without attributing services or guarantees that were never offered.

Connect the operating brief to the receiving-system assessment

The deliverables depend on the agreed scope and approval route. Nevertheless, owners can ask a useful question: can a reviewer trace the proposal from the operating brief through the equipment information to the receiving system assessment? A collection of disconnected drawings is not the same as a coordinated explanation.

The design basis should identify the proposed use, the records relied on and important unresolved limitations. Relevant calculations and selections belong with the responsible professional’s work. The drawing package should make the intended interfaces clear without forcing reviewers to reconstruct them from unrelated documents.

Where several consultants contribute, agree on the document index and issue status. Identify which documents accompany an application and which remain preliminary. Keep manufacturer material tied to the specified equipment rather than attaching a catalogue with several unselected options.

The coordination lead should track review comments against the affected documents. A response that changes equipment may also require changes to a schedule or receiving-system assessment. Record those consequences instead of treating each comment as an isolated wording exercise. The final issue should tell one consistent story.

Maintenance handoff for grease interceptor and septic design

A design review should not end with an owner who cannot identify the equipment or find its operating information. Interceptor maintenance information needs to make the approved arrangement understandable to the people responsible for running the property. This is especially important when a landlord, tenant and service provider have different responsibilities.

Retain the relevant approval documents, final design information, manufacturer material and service contacts together. Identify who holds the records and how replacements or later alterations will be documented. A staff change should not erase the basis on which the wastewater arrangement was established.

Ontario’s Part 8 includes operation and maintenance requirements, including a referenced maintenance standard for the relevant grease interceptors. The applicable requirements, equipment information and service arrangements should guide the operating plan. A generic online cleaning interval is not a substitute for that project-specific interceptor maintenance review.

Document responsibilities without implying that the article sets contractual obligations. The owner and operator should clarify who arranges servicing, records completed work and reports concerns. If a lease allocates responsibilities, obtain appropriate professional advice about the agreement rather than relying on the engineering drawings to resolve it.

Review changes to kitchen wastewater septic design

Tell the responsible team about a later menu change, equipment replacement or additional food-service activity. Keep the revised operating brief alongside the earlier records. The question is whether the change affects the design basis, not whether the new appliance fits through the door.

Reported backups, spills or unusual operation need appropriate professional attention. Do not bypass equipment, redirect discharge or use this planning guide as troubleshooting instructions. Protect people from contact with wastewater and obtain help from the appropriate service provider and authority for the situation.

Two conceptual grease interceptor septic design examples

An existing rural venue adds regular food preparation

Consider a property whose available records describe occasional events, while the new proposal includes frequent catering preparation. The initial task is not to select a grease interceptor from a catalogue. The team first compares the approved use, existing system information and proposed operating brief.

The equipment schedule then gives the plumbing and sewage reviewers a shared description of the kitchen. Missing records are identified before the owner assumes that the existing system can remain unchanged. The outcome depends on investigation and review; this example does not imply that an upgrade or approval is assured.

A tenant proposes different equipment during design

In a second example, a tenant changes washing equipment after preliminary drawings have been prepared. The coordination issue is whether the earlier equipment information still supports the design. The responsible team reviews the substitution and updates affected documents together.

A clear revision record prevents the supplier’s current schedule from contradicting the plumbing drawings or on-site assessment. These examples are educational scenarios, not descriptions of completed Elmid projects. No client identity, project outcome or product endorsement is implied.

Elmid Design Inc.: kitchen wastewater septic design coordination

For a suitable agreed assignment, Elmid Design Inc. can prepare septic engineering and design drawings and coordinate the supporting property and wastewater information. Confirm the required plumbing input, specialist participation and review responsibilities before commissioning work. These deliverables support a project-specific design review; they do not include equipment installation, cleaning or a guaranteed approval.

Explore Elmid’s septic design scope for residential and non-residential properties

Frequently Asked Questions

Does a grease interceptor make a restaurant suitable for an existing septic system?

No. The receiving system, proposed use and site information need their own assessment. An interceptor does not establish spare capacity, suitable treatment or approval for a changed operation. Provide the existing records and proposed kitchen information together so the interfaces can be reviewed.

Can I use municipal sewer guidance for a rural on-site system?

Not as approval for the on-site arrangement. Municipal sewer guidance addresses its stated setting. Confirm the actual wastewater destination and applicable authority. Plumbing requirements and the receiving sewage-system review must both be considered for the property.

Should I buy equipment before the design review?

Provide proposed equipment information early, but avoid treating purchase as design acceptance. Selection may depend on the complete kitchen and receiving-system assessment. If equipment has already been bought, disclose that fact and request review rather than assuming the design must accommodate it.

What if the existing septic drawings are missing?

Gather the records available from the owner, authority and appropriate service providers. Identify what remains unknown. An initial scope can distinguish document retrieval, investigation and design needs. Missing drawings do not justify assuming that an undocumented system can accept a new use.

Does the grease interceptor replace the septic tank?

Do not treat the components as interchangeable. Their functions and the required treatment arrangement must be established for the actual project. This guide explains coordination questions, not a universal piping sequence or component substitution.

Does Elmid install or clean grease interceptors?

Elmid’s role described here is engineering and design consulting, subject to confirmation of project fit and scope. Installation, cleaning, pumping and ongoing servicing should be arranged with the appropriate providers. Any specialist design participation must also be identified rather than assumed.

What should I send with an initial enquiry?

Send the property location, intended operation, kitchen layout, equipment information and available septic approvals. Include known changes, missing records and the desired project scope. Clear inputs allow the team to identify the next evidence needed without promising a particular design or permit outcome.
