Septic design in Innisfil: start with the site, not a tank

Septic design Innisfil projects need a coordinated layout, a defensible design flow and an understanding of the property's constraints. An Innisfil septic engineer can assess these inputs within the agreed professional scope. Innisfil wastewater system design starts with the proposed building and available site information. Choosing a tank before checking those inputs can leave an owner with equipment that does not suit the proposed building or available treatment area.

The design considers the entire system. It connects the building's wastewater discharge with treatment components, distribution equipment and the receiving soil. It also coordinates those elements with wells, buildings, property boundaries, access and surface drainage.

This guide focuses on the design decisions behind a useful septic submission. For application administration, see the separate Innisfil septic permit guide. For professional involvement and scope, see the Innisfil septic engineering guide.

Key takeaways

• Establish the proposed building use and available site information before selecting equipment.
• Review the whole sewage system when planning an addition, replacement or new residence.
• Coordinate the treatment area with grading, wells, parking and future site changes.
• Separate design consulting, municipal review and physical installation in the project scope.
• Treat a conceptual layout as a starting point, not permission to construct.

Who reviews septic design in Innisfil?

The Town of Innisfil handles local septic-permit applications through Cloudpermit. Its building-permit guidance identifies both new on-site sewage systems and changes to existing systems as permit work.

The Town requires a qualified septic designer’s analysis when a proposal adds any plumbing fixture, adds any bedroom, or increases finished space by 15%. Any one of these conditions can trigger the analysis. This review establishes whether the existing system can accommodate the proposal; it does not automatically mean replacement.

Conservation screening is property-specific. Innisfil identifies the Lake Simcoe Region Conservation Authority and Nottawasaga Valley Conservation Authority. Where the property is within an applicable regulated area, confirm the responsible conservation authority and obtain the required written clearance before submitting the building-permit application, as directed by the Town. Conservation clearance does not replace septic-permit review. The Town also states that applications submitted from April 1, 2025 must follow the 2024 Ontario Building Code.

Keep a clear record of which authority is answering each question. A conservation comment, planning decision and septic review address different matters. Agreement on one part of a proposal should not be treated as approval of the complete development.

Define your septic design project in Innisfil

Start by describing what will change. A replacement system serving an unchanged residence raises different questions from a new dwelling, additional bedrooms or a proposed second unit. The designer needs the proposed configuration, not only a description of how the current household uses the property.

For example, an owner may use a room as an office today but propose a floor plan with additional sleeping accommodation. Explain the intended use and supply the drawings. The designer can then assess the applicable inputs rather than relying on a casual estimate of occupancy.

Existing records are useful, but their limits matter. An old drawing may show the original system rather than later alterations. A maintenance invoice may identify a tank without establishing the approved capacity of the complete system. Flag missing information early so the investigation scope can be agreed.

Information to gather for a septic design quote

Provide the property address, description of the proposed work and available survey or site plan. Include existing and proposed floor plans, septic records, well information and relevant municipal correspondence. Identify any planned pool, garage, driveway extension or significant landscaping change.

Also explain what has already been investigated. Share available soil reports and inspection information rather than assuming that a previous report answers every current question. The consultant should determine whether the records remain suitable for the proposed design.

A useful quote separates the known design scope from work that depends on findings. It should explain the expected deliverables, information the owner must provide and how additional investigation or design changes will be handled.

Site information for septic design in Innisfil

A site evaluation establishes the physical context for the sewage system. The goal is not simply to locate an empty rectangle on a plan. The designer must understand how treatment, drainage, access and the proposed building can work together on the actual property.

Relevant information includes ground levels, slopes, soil conditions, groundwater observations and bedrock depth where applicable. The layout also needs reliable locations for wells, structures, boundaries and other constraints. These inputs influence both the treatment approach and the available arrangement.

Discuss survey requirements before detailed design begins. A drawing prepared for a previous transaction may not contain the elevations or improvements needed for the new work. Identifying missing information at the start is usually more practical than revising an advanced layout around an unexpected constraint.

Elmid Design Inc. does not provide soil investigations or percolation testing. The owner arranges the required work through a qualified soil or geotechnical professional and supplies the results for design. Our soil testing and septic design guide explains this service boundary.

Soil investigation and testing choices

Innisfil's septic application package identifies percolation testing or native-soil sieve analysis. It also describes test-pit information for the proposed bed area. Do not assume that one test method is mandatory for every property.

Soil information must relate to the proposed design location. A result from another part of a large property may not describe conditions beneath the selected treatment area. Similarly, neighbouring construction does not establish the suitability of this site's soil.

The designer should explain which investigation is needed and how the findings affect the layout. Laboratory results, field observations and the site plan should form a consistent record. If the proposed bed moves substantially, confirm whether additional investigation is necessary.

Groundwater, bedrock and surface drainage

Groundwater and bedrock can constrain the available vertical arrangement. A design therefore needs more than a plan view showing horizontal dimensions. Sections and elevations help explain how the proposed system relates to the ground and limiting conditions.

Surface drainage is a separate but connected consideration. Roof water, driveway runoff and yard drainage should be coordinated with the treatment area. A septic design should not be developed in isolation and then squeezed into a grading plan at the end.

Record uncertainties rather than masking them with a generic assumption. If available observations do not establish a required condition, agree on the next investigation with the designer. Site-specific evidence is more useful than broad claims about soil across Innisfil.

How septic design flow influences the system

Use code-calculated daily design sewage flow, not household water bills alone, to establish the design basis. Actual water use varies, while design must address the applicable building use and calculation method. Ontario's Building Code regulation, including the October 2026 amendment, provides the current regulatory framework. Apply the sewage-system provisions and amendments relevant to the project rather than relying on an older standalone reference.

Design flow affects more than tank selection. It contributes to decisions about treatment capacity, distribution and the receiving area. Changes to the building can therefore require a review even when the tank appears to operate normally.

Ask the designer to identify the inputs used in the calculation. The proposed plans, room uses and plumbing information should agree with the design documentation. If the building proposal changes later, send the updated plans before assuming that the original calculation remains valid.

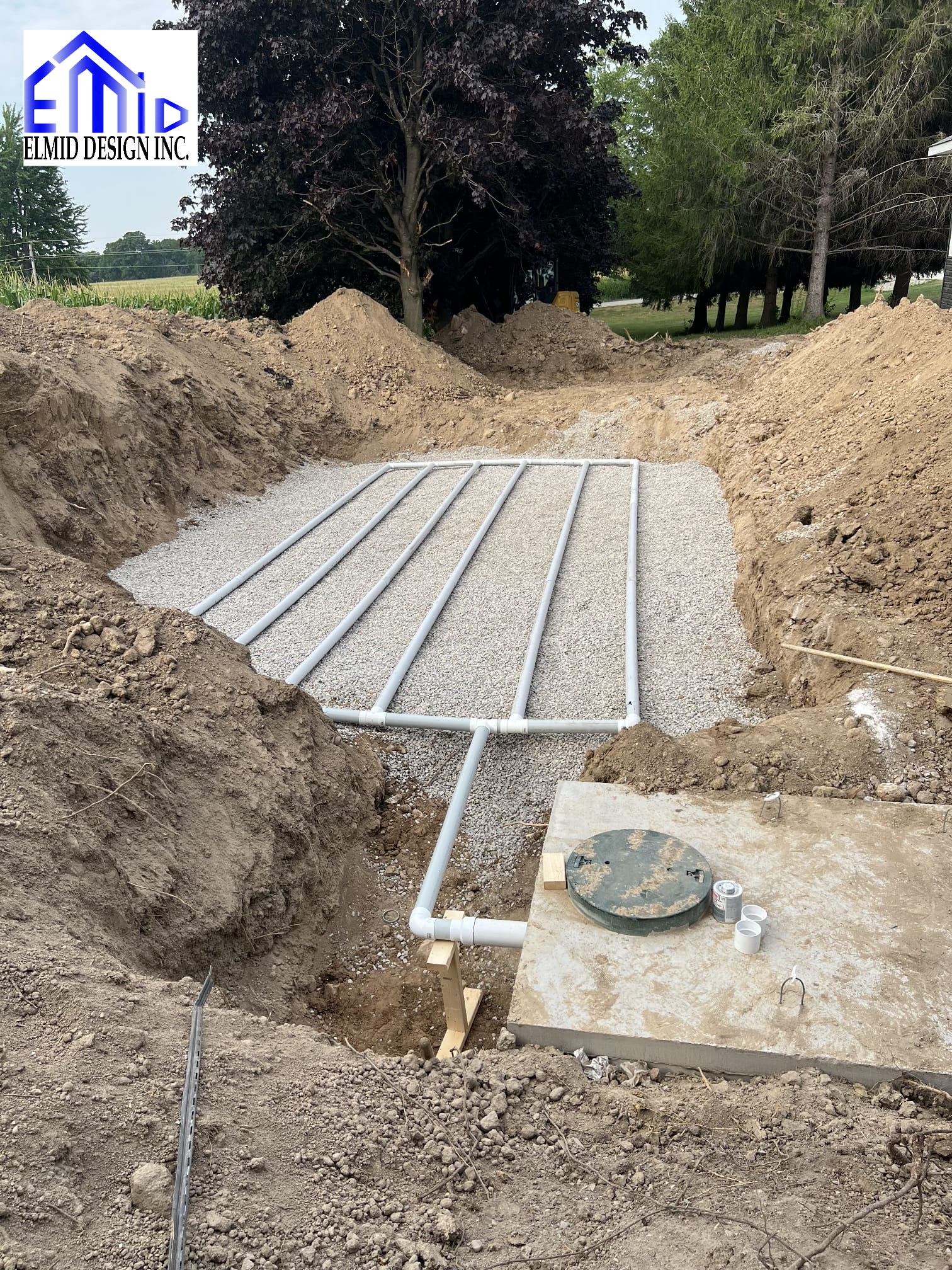

Tank, treatment and distribution are different design questions

A septic tank provides an initial treatment stage, but the tank is not the complete sewage system. Effluent must move through the selected treatment and distribution arrangement to a suitable receiving area. Each part needs to be considered in relation to the others.

Depending on the chosen arrangement, the design may include additional treatment, pumping or dosing components. Their role should be explained in the drawings and supporting documents. Equipment selection should follow the design requirements rather than advertising claims alone.

Access also matters. The proposed arrangement needs to consider how components will be reached for maintenance without conflicting with permanent improvements. Discuss the operating implications of the selected system before committing to a layout or obtaining installation prices.

When the provincial approval route needs checking

Ontario's regulatory guidance distinguishes Building Code sewage systems with capacity up to and including 10,000 litres per day from systems requiring environmental permissions. However, capacity alone does not settle jurisdiction. Multiple sewage works on one parcel require environmental permission where their combined design capacity exceeds 10,000 litres per day. Works extending beyond the parcel containing the building served also require provincial review, regardless of capacity.

For larger, shared or unusual proposals, establish jurisdiction before assuming a standard residential permit process. Refer to Ontario's regulatory roles and sewage environmental-permissions guidance. Obtain project-specific direction where the arrangement falls outside a straightforward single-property system.

Septic design in Innisfil: choosing the layout

A useful layout shows how the system fits the property as a whole. The location of the building connection, tank, treatment components and bed should be considered together. Moving one element may affect pipe routing, elevations, access or the space available for another.

The design should also consider the owner's confirmed site plans. A future pool or detached building is not automatically possible because there is open lawn today. Tell the designer about intended improvements so potential conflicts can be discussed before the septic arrangement is finalized.

Do not assume that an existing location can be reused without assessment. Replacement work may need updated information about the site and proposed use. The available options should follow the investigation and applicable requirements rather than a preference to avoid disturbing a particular area.

Conventional and advanced treatment options

A conventional arrangement may be suitable where the site and design requirements allow it. Other projects may warrant an advanced treatment option. The comparison should consider the complete system, available space, operating needs and site constraints—not just the purchase price of a unit.

Advanced treatment can be an option, but it does not guarantee that a constrained lot is buildable. Soil, separation, layout and approval requirements still apply. Avoid purchasing equipment on the assumption that it will remove every constraint identified during early planning.

Ask for an explanation of why the proposed option fits the project. Useful discussion covers the design basis, component arrangement, maintenance implications and remaining approvals. It should also identify what must be confirmed before the design can progress.

Rural and waterfront property considerations

For rural or waterfront properties, begin with the actual mapped and observed constraints. The presence of a lake nearby does not establish one universal design solution. Conversely, a property that looks well separated from water can still need regulatory screening.

Check the relevant authority information alongside the site investigation. Explain known wells, water features, slopes and access limitations to the design team. Where a conservation review applies, coordinate its requirements with the developing septic and grading layouts.

Keep assumptions visible in project correspondence. A preliminary option can help owners understand the site, but it is not a promise of approval. Make major property or construction decisions using the confirmed design and applicable approvals, not a conceptual sketch alone.

Septic design for additions and replacement systems

An addition can affect wastewater design even if it does not sit directly over the existing system. Review the proposed use, floor plan and plumbing changes together. The question is whether the complete existing system can support the proposal and whether physical changes create a conflict.

A replacement assessment should also look beyond age. Condition, available records, capacity and the proposed work all matter. An older system is not automatically unsuitable solely because of its installation date; a system that appears recent is not automatically suitable for expanded use.

For either type of project, coordinate the septic review with the building designer. A late change in bedrooms, finished space or building placement can affect earlier assumptions. A shared current drawing set helps avoid conflicting versions during municipal review.

Can the tank be replaced without redesigning the bed?

That depends on the existing system and proposed work. Replacing one component should not be treated as proof that the rest of the system meets the project's needs. Establish the reason for replacement, available records and the condition information needed for assessment.

Discuss the proposed scope with the designer and reviewing authority before ordering a replacement tank. The resulting advice may distinguish a limited component change from work requiring a broader design review. A generic online answer cannot resolve that distinction for a particular property.

Keep the installer and designer working from the same approved scope. If site conditions differ from the drawings during excavation, resolve the discrepancy before making an undocumented field substitution. Construction changes can affect the assumptions behind the design.

Compare options with a decision record

When more than one arrangement appears possible, compare the reasons for each option before advancing the drawings. A useful decision record identifies the available investigation, key constraints, proposed system arrangement and questions that still need answers. It should distinguish a preference from a confirmed technical requirement.

For example, one layout may preserve a desired yard area but create a more complicated connection route. Another may fit the connection more naturally while limiting a future improvement. These are project-specific trade-offs, not reasons to select the same system on every property.

Discuss the operating responsibilities as well as the initial design. The owner needs to understand the selected equipment and the space that must remain available around the system. A comparison that considers only the visible tank or the lowest initial price can miss important practical differences.

Once the preferred approach is chosen, document the assumptions behind it. If later information changes an assumption, revisit the decision rather than treating the preliminary layout as fixed. This helps the project team explain revisions and keeps the owner informed about their consequences.

What your Innisfil septic design package should explain

Innisfil's application package calls for scaled plans, sections, dimensions, elevations and system calculations. It includes locations of buildings, wells—including neighbouring wells—and relevant clearances. Soil information, groundwater or bedrock conditions and applicable supporting forms are also part of the submission context. Use the current Town package when assembling the application.

A good package is internally consistent. The system shown on the site plan should match the calculations and sections. The building layout used for design should match the proposal submitted for review. Version dates help the team identify which documents belong together.

Review comments should be answered against that coordinated set. If one drawing changes, check whether the revision affects other documents. A clear response record is more helpful than repeatedly uploading isolated sheets without explaining what changed.

A practical sequence from enquiry to construction

1. Define the proposal. Confirm building use, project limits and the information already available.
2. Establish constraints. Review records, site information and the applicable approval route.
3. Investigate and develop the layout. Obtain the necessary site inputs and compare suitable arrangements.
4. Prepare coordinated documents. Complete the agreed drawings, calculations and supporting information.
5. Address review and construction coordination. Resolve comments and confirm how approved documents, inspections and changes will be handled.

These stages can overlap, but the dependencies remain important. For example, a preliminary drawing can guide investigation without being a final construction document. Agree on the status and permitted use of each issue so everyone understands what is ready and what remains conditional.

Coordinating septic design with grading and other services

The septic layout should be coordinated with the building and civil design. Grading can affect drainage around the treatment area, while building elevations influence connections and available levels. Parking, access and other improvements can limit placement or create maintenance conflicts.

The appropriate level of coordination depends on the project. A limited replacement may need a different drawing scope from a new residence with extensive site changes. Agree which consultant is responsible for each drawing and how information will be shared.

This is also the time to distinguish sanitary wastewater from stormwater. Roof and surface drainage should not be treated as interchangeable with the sewage-system design. If the project needs a separate drainage or stormwater assessment, identify that scope explicitly rather than assuming the septic package covers it.

Coordinate future changes without promising future approval

Tell the designer about realistic future intentions, but distinguish them from the current application. An owner may want an addition, secondary unit or pool later. These plans can inform discussion of potential conflicts, yet a present design does not grant permission for a future project.

Avoid treating spare-looking space as a guaranteed reserve for development. A later proposal may change wastewater requirements, site access or the available layout. It may also be reviewed under different applicable requirements. Keep the current design basis clear so a future consultant can understand what was actually assessed.

If the project has several phases, identify which phase the drawings cover. Share the overall concept with the team and clarify which parts remain preliminary. This is especially useful when building design and site work proceed at different times or involve different consultants.

Maintain one current set of documents for decisions. When the owner, building designer and installer each have a different drawing issue, a simple change can create avoidable confusion. Record revisions and circulate them to the people whose work depends on them.

Keep the design and installation responsibilities clear

Elmid Design Inc. provides engineering and design consulting. Its septic design work can include calculations, layouts, details and permit-support documentation within the agreed scope. Physical installation and construction remain the construction team's responsibility.

Before obtaining installation prices, confirm which drawing issue is intended for pricing and which remains under review. A price based on incomplete information may not cover the final arrangement. Similarly, a contractor's proposed substitution needs design review where it affects the approved system.

Agree how questions will be raised during construction. A clear communication route helps the owner, consultant and installer address unexpected conditions without losing the record of decisions. It does not replace required authority inspections or approvals.

Septic design in Innisfil: costs and operating expectations

Septic design costs depend on the project information, investigation needs and design complexity. Keep design consulting separate from survey work, testing, application charges, equipment and installation. Comparing quotations is easier when each identifies what is included and what depends on additional findings.

Do not treat a single price from another property as a reliable budget for this one. A constrained layout, incomplete records or a substantial change in building use may require different work. Ask for the assumptions behind the proposed fee and a process for approving additional scope.

The same distinction applies to time. Design preparation, outside investigations, authority review and construction are separate stages. Confirm realistic project-specific milestones rather than treating an application-processing statement as a guaranteed start-to-finish schedule.

Maintenance is part of selecting the system

Consider operating and maintenance responsibilities while comparing design options. Ask which components need routine attention, which records should be retained and whether the selected treatment equipment has specific service requirements. These practical obligations should be understood before installation.

Follow the applicable system documentation and advice from qualified service providers. Avoid relying on one universal pumping interval for every household and system. Use the system's condition, loading and documented requirements to establish an appropriate maintenance approach.

Keep the approved drawings, relevant inspection records and subsequent service information together. This record can help future assessments when the building changes or a component needs attention. It is more useful than relying on memory about where the system was installed.

Elmid Design Inc. septic design experience in Innisfil

Elmid Design Inc.'s public project portfolio includes a replacement septic-system design for a residential property in Gilford, within Innisfil. The recorded scope includes sewage-flow calculations, system layout and details, and permit application support.

The portfolio also identifies a septic design for a proposed Innisfil residence. That work coordinated treatment and dosing components, dispersal-bed sizing, and clearances from wells, buildings and parking. Its listed status was technical review in October 2026—not a verified final approval or completed installation.

These examples show the design deliverables involved. They do not establish that another property has the same conditions or approval route. Elmid Design Inc. prepares site-specific septic drawings and calculations; a project's layout follows its own evidence and requirements.

How to start your Innisfil septic design enquiry

Send the property address, proposed work and available plans to Elmid Design Inc. Explain whether the request concerns a new residence, an addition, a replacement or an assessment of the existing system. Include any authority comments already received.

The initial discussion should establish the service needed and what information is missing. From there, the design scope can identify the expected drawings, calculations, coordination and permit-support tasks. Ask how changes to the building proposal will be handled during the design process.

The objective is a clear, coordinated basis for decisions—not simply a drawing labelled septic. A well-defined scope helps the owner understand the next steps and helps the project team work from consistent information.

Frequently asked questions about septic design in Innisfil

Does septic design include installation?

No. Design consulting and physical installation are different services. Elmid Design Inc.'s agreed scope may include drawings, calculations and permit support; the construction team carries out installation. Confirm any construction-review services separately.

Is the biggest tank always the best choice?

No. Tank size is one element of the complete design. Treatment, distribution, the receiving area and site conditions must work together. Select components from the design requirements rather than assuming that a larger tank resolves every issue.

Can I use a neighbour's septic layout?

Not as a site-specific design. Nearby properties can have different soil, levels, wells, building uses and available space. A neighbouring layout may illustrate a concept, but it does not establish the appropriate arrangement for your property.

Will advanced treatment guarantee approval on a small lot?

No. It may be considered as an option, but the lot still needs to satisfy the applicable site and approval requirements. Confirm feasibility before buying equipment or relying on a preliminary arrangement for a construction decision.

Should I finish the building plans before discussing septic design?

Coordinate both early. The sewage design needs the proposed building information, while its available location can influence the broader site layout. Share updated plans whenever the proposal changes so both disciplines use consistent assumptions.

What if existing septic records are missing?

Tell the designer before the scope is finalized. Additional investigation may be needed to establish the existing arrangement and assess the proposed work. Missing records should not be replaced with an unsupported assumption about capacity or condition.

Can septic drawings guarantee a permit or a construction price?

No. The reviewing authority decides permit applications, and installation pricing depends on the actual work and procurement arrangements. Drawings support those processes, but they do not remove site uncertainty or replace the authority's decision.

What should I do before changing an approved layout?

Contact the responsible designer and confirm the applicable review process. Moving components or substituting equipment can affect calculations, clearances and coordination. Keep the revised documents and decisions with the project record rather than making undocumented changes.
